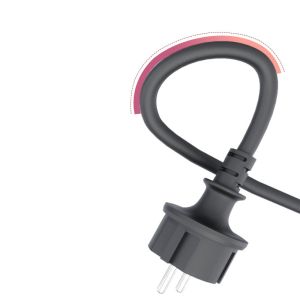

IP44 Plug Wire To BC01 Three-Core Connector 3X1.5 Square Micro
Inverter Waterproof Power Connector Details
Pin: 2/3/4/5/7/9/12 Male Femal Connector Current Rating(A): 20A Max
Material:PA66 Nylon Conenction Way: Screw-less type waterproof connector
Operating Voltage: 500V Assembly Wire: Soldering or screw fitting
Out Door UV Resistance: Pass Cable Jacket OD: 4.5-9.2mm
IP44 Plug Wire To BC01 Three-Core Connector 3X1.5 Square Micro
Inverter Waterproof Power Connector datasheet
| Part No. | CB-LP20-2P | CB-LP20-3P | CB-LP20-4P | CB-LP20-5P | CB-LP20-7P | CB-LP20-9P | CB-LP20-12P |
| Pins | 2 Pin | 3 Pin | 4 Pin | 5 Pin | 7 Pin | 9 Pin | 12 Pin |
| Wire Connection Way | Bonding wire | √ | √ | √ | √ | √ | √ | √ |
| Locking wire | √ | √ | √ | √ | × | × | × |
| Contact member | Bonding Wire | φ2.7*2 | φ2.7*3 | φ2.7*4 | φ1.8*5 | φ1.8*7 | φ1.0*9 | φ1.0*12 |
| Locking Wire | φ2.4*2 | φ2.4*3 | φ2.4*4 | φ1.8*5 | × | × | × |
| Applicable wire gauge | 2.5～4 mm² 14～12 AWG | 1～1.5 mm² 18～16 AWG | 0.34～0.75 mm² 22～20 AWG |
| Rated Cureent | 20 A | 10A | 5A |
| Rated Voltage | 500V AC | 500V AC | 250V AC |
| Insulation voltage | 2500V AC | 2000V AC | 1500V AC |
| Contact impedance | ＜ 1 mΩ | ＜ 3 mΩ | ＜ 5 mΩ |
| Temperature rise | 20A 30℃↓;25A 40℃↓;30A 50℃↓ | 10A 30℃↓;15A 40℃↓;20A 50℃↓ | 5A 30℃↓;7A 40℃↓;10A 50℃↓ |
| Insulation resistance | ≥ 1000 MΩ |
| Mechanical life | ≥ 1900 Times |
| Ambient temperature | -40～+85 ℃ |
| High temperature aging | 85 ℃ / 168 h |
IP44 Plug Wire To BC01 Three-Core Connector 3X1.5 Square Micro
Inverter Waterproof Power Connector advantages:
Introducing the IP44 Plug Wire to BC01 Three-Core Connector 3X1.5
Square Micro Inverter Waterproof Power Connector! This high-quality
connector is specially designed to provide reliable and waterproof
power connections.
Constructed with precision and durability in mind, it ensures a
secure fit and optimal performance even in challenging
environments. The 3X1.5 square configuration offers efficient power
transmission, making it ideal for various applications, especially
in micro inverter setups.
With its IP44 waterproof rating, you can have peace of mind knowing
that your power connections are protected from moisture, dust, and
other elements. Wheth
IP44 Plug Wire To BC01 Three-Core Connector 3X1.5 Square Micro
Inverter Waterproof Power Connector Application
FAQ
1. Q: What type waterproof connectors do you have?
A: We have All series type waterproof connectors, Many types are
our private mold, some of our connectors are customized.We foucs on BC01 Welded 7-Core Male Plug With Flange Female Socket Cutting
Machine Wall Aviation Plug Waterproof Power Connector,Assembly waterproof connector,Over-mold waterproof connector,T
waterproof connector,Y customized waterproof connector,Livestock industry, poultry industry waterproof connector, New
Energy Waterproof Connector, Solar System waterproof connector...
2. Q: How to buy your products?
A: Contact With Our Sales Team online or By email
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and shipping way
3. Q: How to contact with you?
A: Please give us email or Phone number,skype or whatsapp ID if
possible, we have worked for this industry more than 8 years,we
have Professional sales and R&D team , we can catch your problem,and solve it in a short time.if you have
any question please feel free to let us know.
