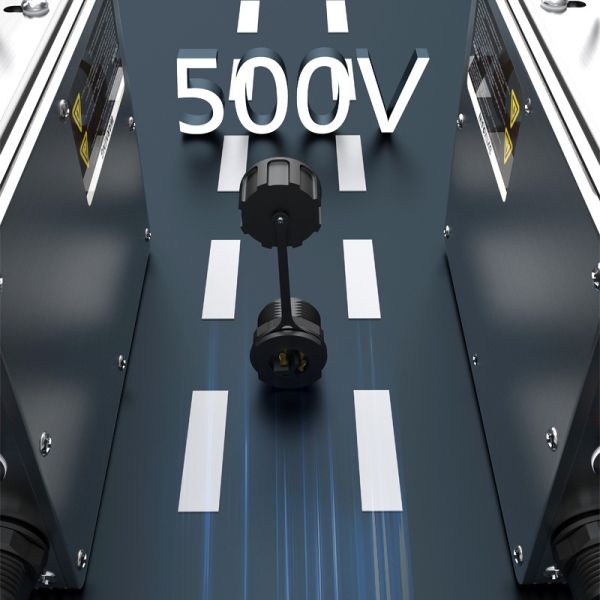

M25-3-Core Front Waterproof Panel Mount Connector Female For
Photovoltaic Micro Inverters Details
Pin: 2/3/4/5/7/9/12 Male Femal Connector Current Rating(A): 10A Max
Material:PA66 Nylon Conenction Way: Screw-less type waterproof connector
Operating Voltage: 400V Assembly Wire: Soldering or screw fitting
Out Door UV Resistance: Pass Cable Jacket OD: 4-9mm
M25-3-Core Front Waterproof Panel Mount Connector Female For
Photovoltaic Micro Inverters datasheet
| Part No. | CB-LP25-2P | CB-LP25-3P | CB-LP25-4P | CB-LP25-5P | CB-LP25-7P | CB-LP25-9P |
| Pins | 2 Pin | 3 Pin | 4 Pin | 5 Pin | 7 Pin | 9 Pin |
| Wire Connection Way | Bonding wire | √ | √ | √ | √ | √ | √ |
| Locking wire | √ | √ | √ | √ | × | × |
| Contact member | Bonding Wire | φ2.7*2 | φ2.7*3 | φ2.7*4 | φ1.8*5 | φ1.8*7 | φ1.0*9 |
| Locking Wire | φ2.4*2 | φ2.4*3 | φ2.4*4 | φ1.8*5 | × | × |
| Applicable wire gauge | 1.5mm² /16AWG | 0.5 mm² / 20 AWG | 0.5 mm² / 20 AWG |
| Rated Cureent | 15 A | 5A | 5A |
| Rated Voltage | 400V AC | 250V AC | 250V AC |
| Insulation voltage | 2000V AC | 1500V AC | 1500V AC |
| Contact impedance | ＜ 3 mΩ | ＜ 5 mΩ | ＜ 5 mΩ |
| Temperature rise | 20A 30℃↓;25A 40℃↓;30A 50℃↓ | 10A 30℃↓;15A 40℃↓;20A 50℃↓ | 5A 30℃↓;7A 40℃↓;10A 50℃↓ |
| Insulation resistance | ≥ 1000 MΩ |
| Mechanical life | ≥ 1900 Times |
| Ambient temperature | -40～+85 ℃ |
| High temperature aging | 85 ℃ / 168 h |
M25-3-Core Front Waterproof Panel Mount Connector Female For
Photovoltaic Micro Inverters advantages:
The M25-3-Core Front Waterproof Panel Mount Connector Female is a
specialized component designed specifically for photovoltaic micro
inverters. This connector offers reliable and watertight
connections, ensuring the safety and efficiency of the photovoltaic
system.
Its female design provides a secure fit, preventing any loose
connections that could lead to power loss or system malfunctions.
The waterproof feature protects the connection from moisture and
environmental factors, enhancing the durability and longevity of
the inverter.
This connector is engineered to meet the demanding requirements of
photovoltaic applications, guaranteeing stable power output and
optimal performance. It is a crucial element in building a
resilient and efficient solar energy conversion system.
Choose the M25-3-Core Front Waterproof Panel Mount Connector Female
for a seamless and reliable photovoltaic micro
inverter setup.
M25-3-Core Front Waterproof Panel Mount Connector Female For
Photovoltaic Micro Inverters Application
FAQ
1. Q: What type waterproof connectors do you have?
A: We have All series type waterproof connectors, Many types are
our private mold, some of our connectors are customized.We foucs on P16 Self-Locking Injection Waterproof Male Female Connector Plant
Growth Light Outdoor Waterproof Equipment Connector,Assembly waterproof connector,Over-mold waterproof connector,T
waterproof connector,Y customized waterproof connector,Livestock industry, poultry industry waterproof connector, New
Energy Waterproof Connector, Solar System waterproof connector...
2. Q: How to buy your products?
A: Contact With Our Sales Team online or By email
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and shipping way
3. Q: How to contact with you?
A: Please give us email or Phone number,skype or whatsapp ID if
possible, we have worked for this industry more than 8 years,we
have Professional sales and R&D team , we can catch your problem,and solve it in a short time.if you have
any question please feel free to let us know.
4. Q: Can i get samples?
A: It's my honor for us to offer you samples,you just need pay
freight cost.You can let me know your courier number and your
detail address,Then I can send you sample at once.
