P25 Waterproof Circular Connector with 0.5mm²-2.5mm² Wire Gauge 1600mA Rated Current and 0.45KV Operating Voltage

Waterproof Connector P25 5-Pin IP67 Quick-Connect In-Line

Specifications

Connection Type: Quick Connect

Installation Type: Wire-to-Wire

Pin: 5

Material: PA66

Applicable Wire Gauge: 0.5mm²-2.5mm²

Waterproof Ring: 5-9mm 9-12mm 10-14mm

Rating:IP68

Datasheet

Parameter	Specification
Product Name	Waterproof Connector P25 5-Pin IP67 Quick-Connect In-Line
Wiring Range	0.5 - 2.5 mm²
Rated Current	1600mA
Operating Voltage	0.45KV
Ingress Protection (IP) Rating	IP66/IP67 /IP68
Ambient Temperature	-40℃ ~ +105℃
Cable Diameter (OD)	5-14mm

Advantages

IP68 Rated for Dust & Water Protection
Its IP68 rating ensures complete protection against dust ingress and reliable operation even when temporarily submerged underwater, making it ideal for harsh environments.

Tool-Free Quick-Connect Operation
The quick-connect design enables simple, tool-free mating and disconnection, which significantly reduces installation time and effort.

5-Pin Design for Versatile Applications
The 5-pin configuration allows for the simultaneous transmission of power, signals, and data in a single connection, suitable for complex control systems.

Durable In-Line Construction
The robust in-line form factor is engineered for long-term reliability in demanding applications, seamlessly connecting two cable ends with a secure and stable link.

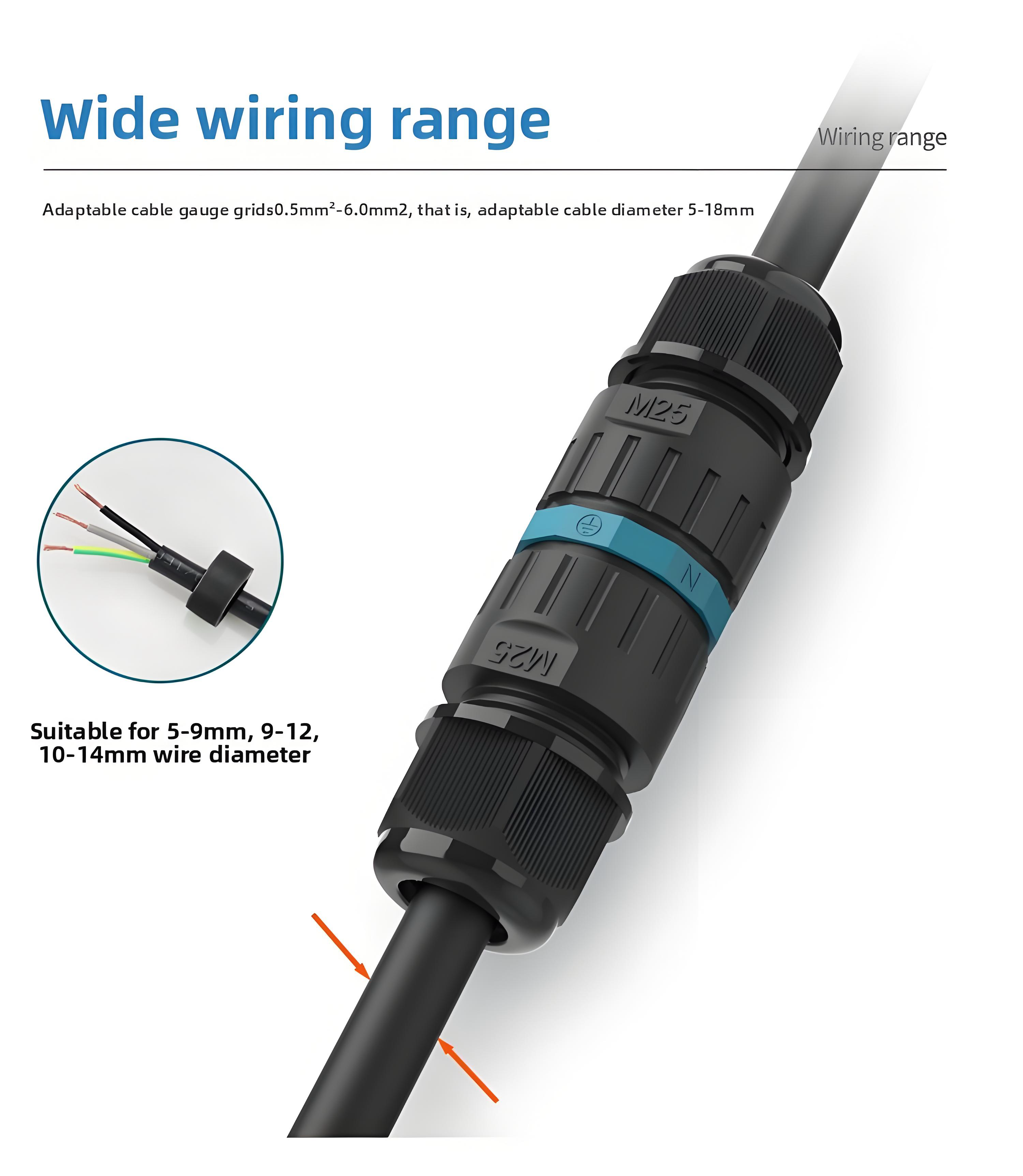

Product Images

FAQ

1. What is the IP68 rating?
  The IP68 certification guarantees the connector is fully protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.
2. How does the quick-connect mechanism work?
  It features a simple push-and-lock design that allows for secure mating and disconnection without any tools.
3. What wire gauges are compatible?
  It is designed to accommodate standard wire gauges, with a common range of up to 18 AWG for flexible and reliable wiring.
