    IP67 Waterproof 350A Stud Type Energy Storage Connector Fixed Position

    Ask Lasest Price
    Brand Name : Cablein
    Certification : CE, ROHS, TUV , ETL
    Price : The price ranges from $1 to $4 USD per pieces
    Payment Terms : T/T,Western Union
    Supply Ability : Monthly output: 10,000 sets
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    IP67 Waterproof 350A Stud Type Energy Storage Connector Fixed Position

    IP67 Waterproof 350A Stud Type Energy Storage Connector  Fixed Position
    Specifications

    Rating: IP67

    Connection Type: Threaded Hole

    Waterproof Ring:20mm

    Material: Plastic

    Current:350A

    Datasheet
    ParameterSpecification
    Product NameIP67 Waterproof 350A Stud Type Energy Storage Connector  Fixed Position
    Rated Current350A
    Outside Diameter (OD)20mm
    Rated Voltage1500V DC
    Cable Cross-Sectional Area4/0AWG(120mm²)
    Flame Retardant RatingUL-94
    Insulation MaterialFA66+GF
    Contact MaterialsCopper T2/BeCu  Silver/Tin Plating
    Advantages
    1. Robust 350A Current Handling
    2. IP67 Rated Water & Dust Protection
    3. Secure Stud-Mount Fixation
    4. Fixed-Position (Non-Rotating) Design
    Product Images
    FAQ

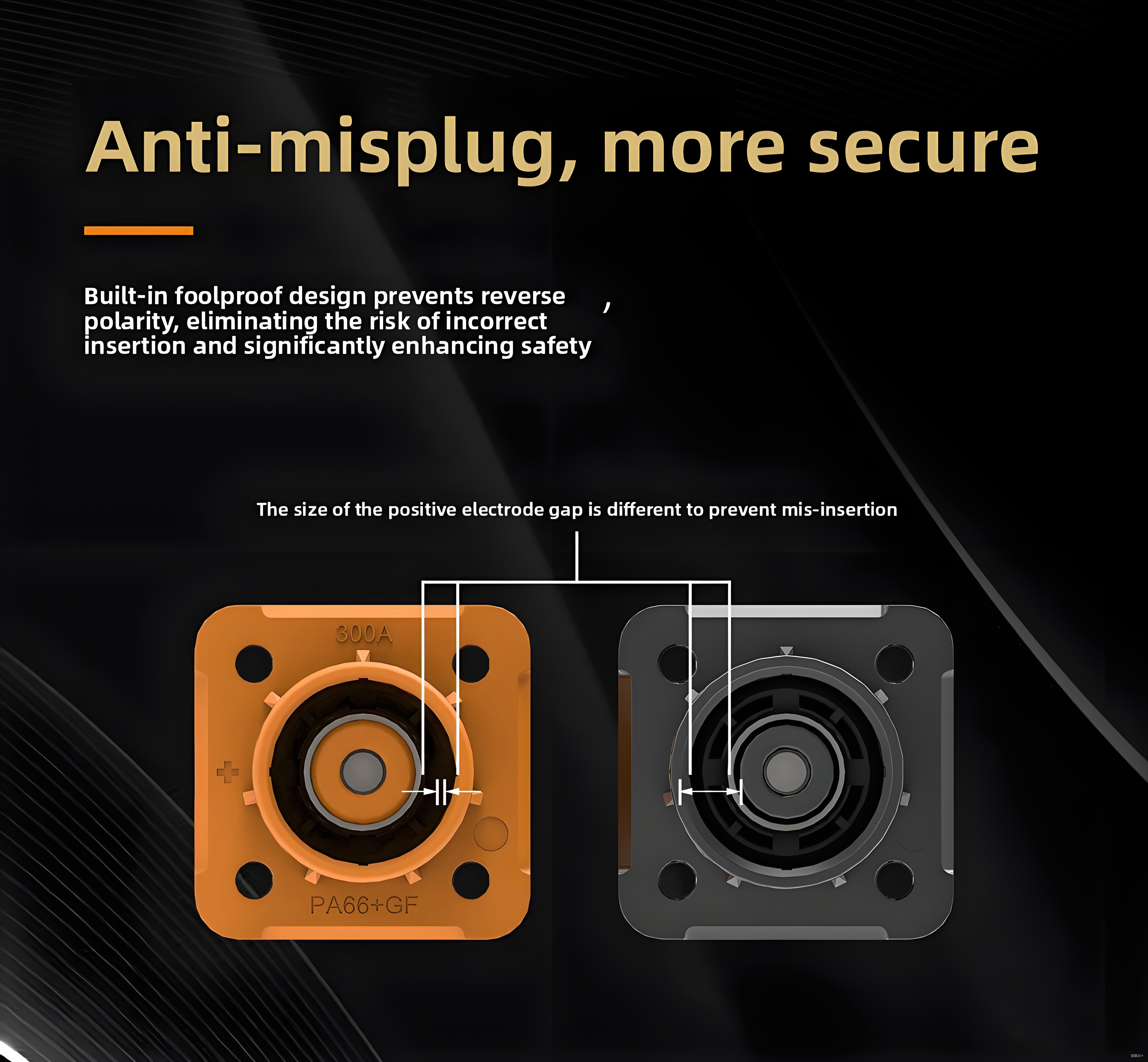

    1. What is the key benefit of the fixed-position design?

      It prevents terminal rotation during installation and use, ensuring proper alignment, a more reliable connection, and simplified, error-free wiring.

    2. How does the IP67 rating protect the connector?

      It provides complete protection against dust ingress and allows the connector to be temporarily immersed in water up to 1 meter deep, making it suitable for harsh outdoor or industrial environments.

    3. Is this connector suitable for both positive and negative terminals?

      While electrically capable, its standard black color typically identifies it as the negative pole connector for safe and correct system polarization.

    Product Tags:

    20mm Waterproof Ring Energy Storage Connector



    1500V DC Circular Connector



    4/0AWG Cable Stud Type Connector
